Vacuum Packaging Machines – Industrial Packaging Solution

Discover Shivshakti’s full range of vacuum packaging machines—from compact chamber systems to high-capacity stainless steel models—engineered for export-grade sealing, air extraction, and thermal precision. Designed for food, medical, and industrial packaging workflows requiring durability, speed, and vacuum control.

Vacuum Packaging Machines Industrial Packaging Machine - ShivShakti Packaging
Vacuum Packaging Machines Industrial Packaging Machine - ShivShakti Packaging
Vacuum Packaging Machines Industrial Packaging Machine - ShivShakti Packaging
vacuum-packagingmachinesautomaticsemi-automaticmanual

Available Model Variants & Specifications

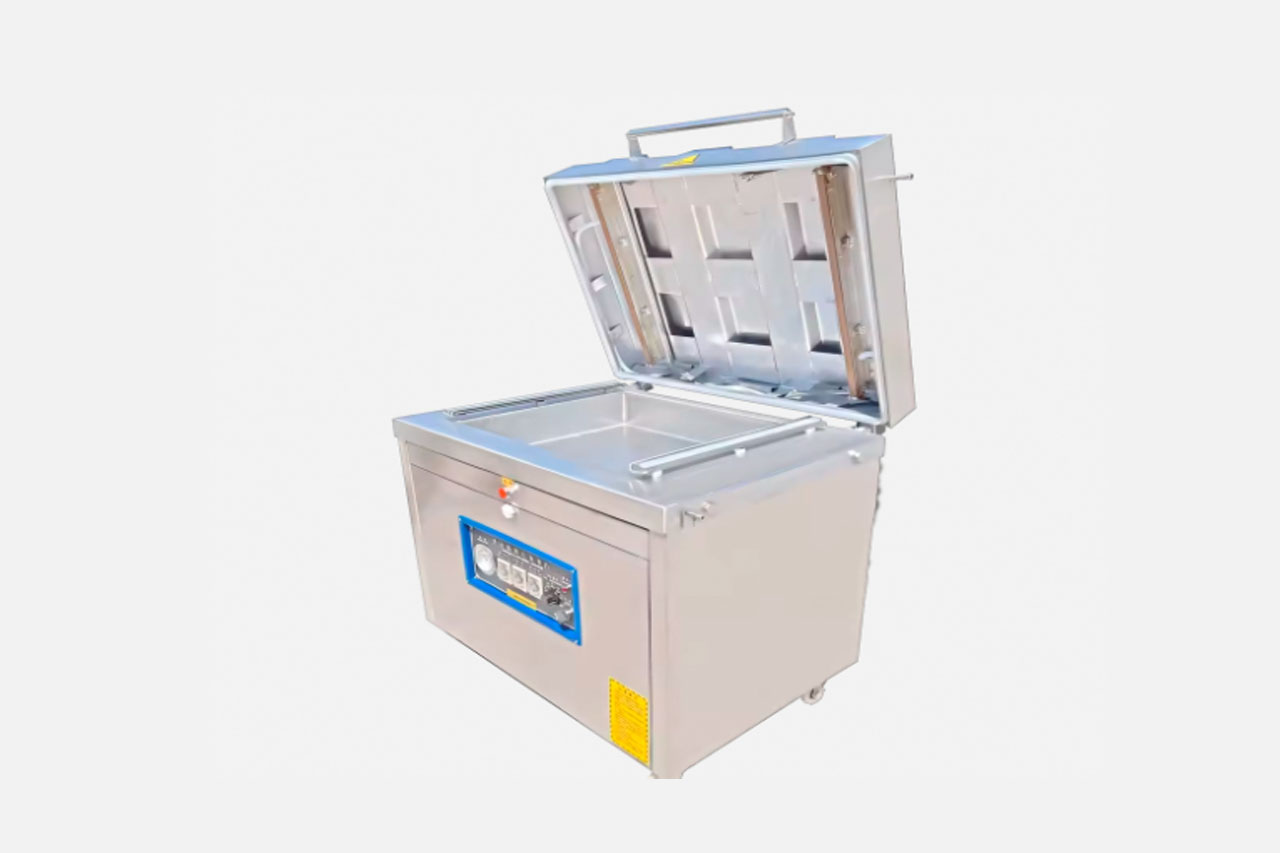

DZ(Q)-4002E main image
Thumbnail 1
Thumbnail 2
Thumbnail 3

DZ(Q)-4002E

Compact vacuum system for small-format packaging
Power Supply
110V / 220V, 50Hz, 0.75 KW
Heat Sealing Power
0.5 KW
Vacuum Case Volume
440 x 420 x 130 mm
Sealing Strip Size
400 x 10 mm
Vacuum Pump Capacity
20 m³/hour
Machine Dimension
540 x 490 x 880 mm
Machine Weight
120 kg
Remarks
Compact vacuum system for small-format packaging
DZ(Q)-5002E main image
Thumbnail 1
Thumbnail 2
Thumbnail 3

DZ(Q)-5002E

Stainless steel vacuum system with dual heater support
Power Supply
220V / 380V, 50Hz, 0.75 KW
Heat Sealing Power
0.5 KW
Lowest Absolute Pressure
1.33 Kpa
Vacuum Case Volume
520 x 500 x 130 mm
Sealing Strip Size
500 x 10 mm
Number Of Heaters
1 or 2 pcs
Material
Stainless steel (vacuum case and hull)
Machine Dimension
610 x 510 x 920 mm
Machine Weight
140 kg
Remarks
Stainless steel vacuum system with dual heater support
DZ(Q)-6002E main image
Thumbnail 1
Thumbnail 2
Thumbnail 3

DZ(Q)-6002E

High-capacity vacuum system for large-format packaging
Power Supply
220V / 380V, 50Hz, 1.5 KW
Heat Sealing Power
0.7 KW
Vacuum Case Volume
650 x 595 x 150 mm
Sealing Strip Size
single: 600 x 10 mm | double: 570 x 10 mm
Vacuum Pump Capacity
40 m³/hour
Machine Dimension
730 x 710 x 960 mm
Machine Weight
160 kg
Remarks
High-capacity vacuum system for large-format packaging

Need Custom Packaging Engineering?

We design automation-ready packaging systems tailored to your production workflow and export standards.
