Strapping Machines – Industrial Packaging Solution

Explore Shivshakti’s complete range of strapping machines—from semi-automatic to fully automatic and combo systems—engineered for corrugated, FMCG, and export-grade packaging. Designed for speed, precision, and coil flexibility across diverse packaging formats.

strappingmachinesautomaticsemi-automaticmanual

Available Model Variants & Specifications

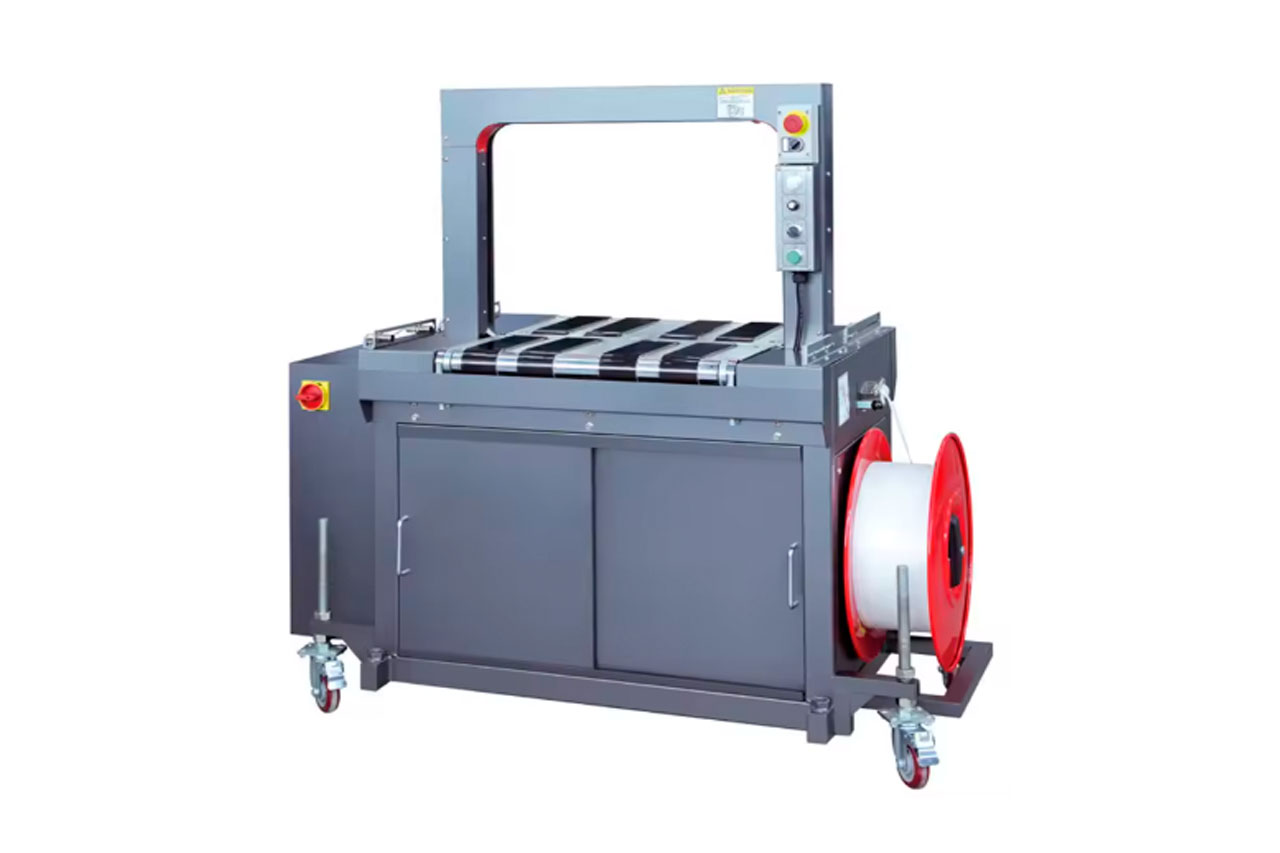

SSP-01FA Heavy Duty main image

SSP-01FA Heavy Duty

Heavy-duty automatic strapping for high-volume packaging

Arch Size: 850W x 400/600H mm
Strap Cycle Speed: 27 cycles/min
Tensile Strength: Max. 70 kg (mechanically adjustable)
Strap Width: 9/12/15 mm (to be specified)
Sealing Method: Heat Sealing
Dimensions: 1400W x 640D x 1475H mm
Table Height: 805 mm
Power Supply: 3 Phase, 380V, 50Hz, 1250W
Machine Weight: 220 kg
Gross Weight: 265 kg
Control: PLC Control
Remarks: Heavy-duty automatic strapping for high-volume packaging

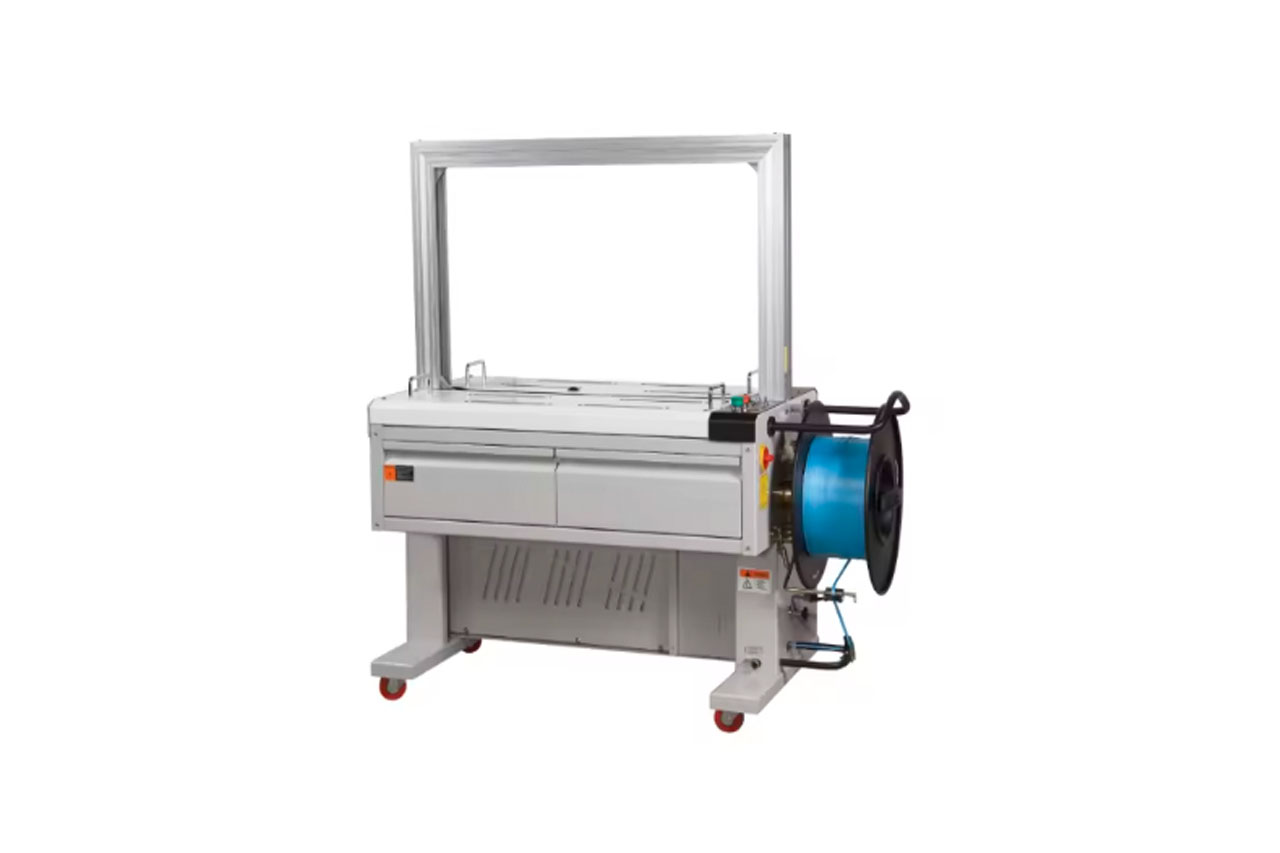

SSP-01FA PBC (Online) main image

SSP-01FA PBC (Online)

Online automatic strapping for dynamic packaging lines

Arch Size: 850W x 600H mm
Strap Cycle Speed: 2.5 sec/cycle
Tensile Strength: Max. 70 kg
Strap Width: 9/12/15 mm
Sealing Method: Heat Sealing
Dimensions: 1550W x 640D x 1550H mm
Table Height: 820 mm
Package Size: 200–520W x 30–560H mm
Power Supply: 1 Phase 110/220V or 3 Phase 220/380V, 50/60Hz
Machine Weight: 307 kg
Gross Weight: 402 kg
Control: PLC Control
Remarks: Online automatic strapping for dynamic packaging lines

SSP-01FA PRC (Online) main image

SSP-01FA PRC (Online)

Online automatic strapping with extended package range

Arch Size: 850W x 600H mm
Strap Cycle Speed: 2.5 sec/cycle
Tensile Strength: Max. 70 kg
Strap Width: 9/12/15 mm
Sealing Method: Heat Sealing
Dimensions: 1550W x 800D x 1470H mm
Table Height: 810 mm
Package Size: 300–820W x 30–560H mm
Power Supply: 1 Phase 110/220V or 3 Phase 220/380V, 50/60Hz
Machine Weight: 330 kg
Gross Weight: 430 kg
Control: PLC Control
Remarks: Online automatic strapping with extended package range

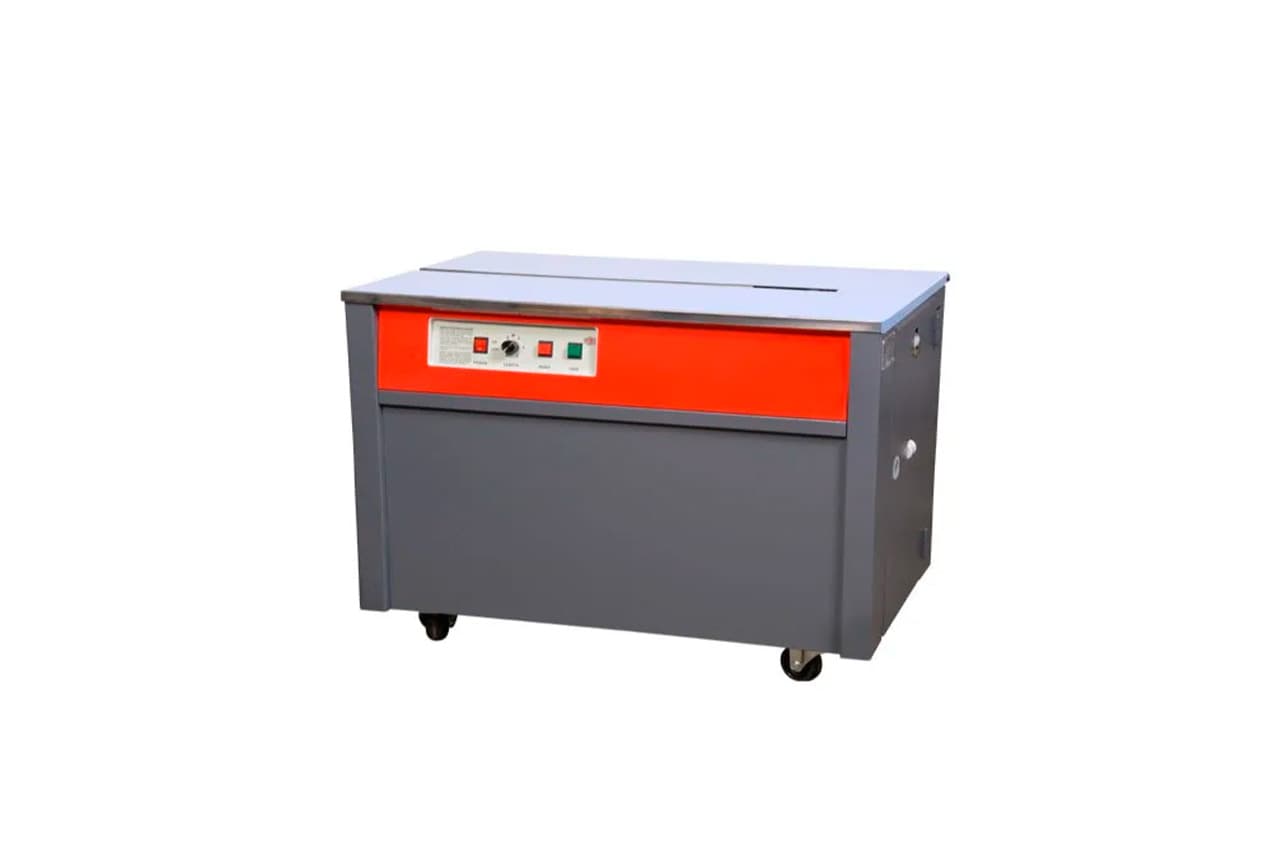

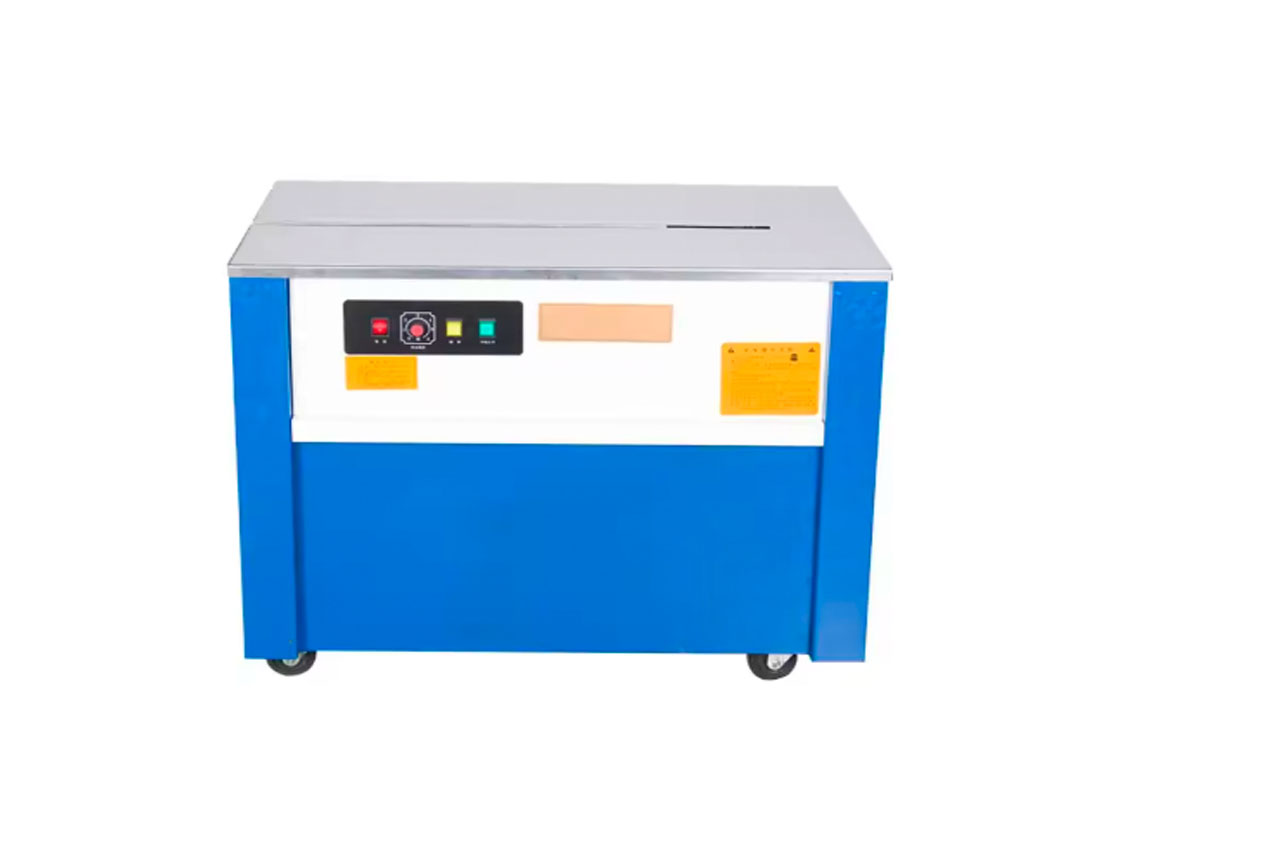

SSP-01SH (Semi-Automatic) main image

SSP-01SH (Semi-Automatic)

Semi-automatic strapping for mid-weight packages

Arch Size: 850W x 600H mm
Strap Cycle Speed: 1.5 sec/strap
Tensile Strength: 15–60 kg
Strap Width: 5–15 mm
Sealing Method: Heat Sealing
Dimensions: 900W x 580D x 750H mm
Table Height: 810 mm
Package Size: 300–820W x 30–560H mm
Power Supply: 220V, 200W, 50/60Hz, 1 Phase
Machine Weight: 110 kg
Gross Weight: 430 kg
Control: Manual
Remarks: Semi-automatic strapping for mid-weight packages

SSP-01SR (Semi-Automatic) main image

SSP-01SR (Semi-Automatic)

Compact semi-automatic strapping for small packages

Arch Size: 850W x 600H mm
Strap Cycle Speed: 1.5 sec/strap
Tensile Strength: 5–50 kg
Strap Width: 6–15 mm (adjustable)
Sealing Method: Heat Sealing
Dimensions: 900W x 580D x 750H mm
Table Height: 810 mm
Package Size: 60W x 30H mm
Power Supply: 220V, 200W, 50/60Hz, 1 Phase
Machine Weight: 100 kg
Gross Weight: 430 kg
Control: Manual
Remarks: Compact semi-automatic strapping for small packages

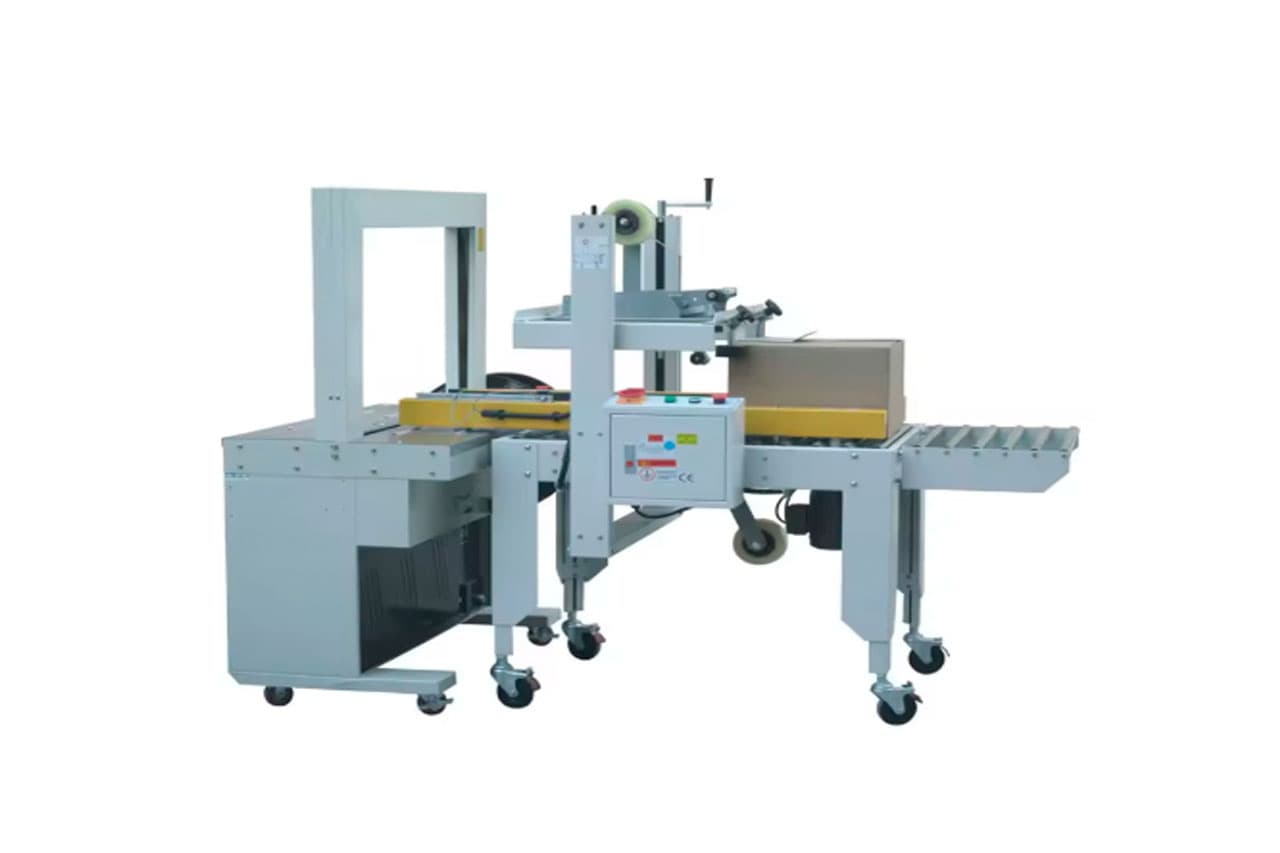

SSP-01SC (Strapping Combo) main image

SSP-01SC (Strapping Combo)

Fully automatic combo system for sealing and strapping

Strap Cycle Speed: 1.5 sec/strap
Belt Speed: 20 m/min (carton sealer)
Carton Weight: 5–40 kg
Strap Width: 9/12/15 mm (to be specified)
Sealing Method: Heat Sealing
Tension Adjustment: 5–70 kg
Adhesive Tape: 48/60/72 mm
Package Size: 300–700L x 200–500W x 150–500H mm
Power Supply: 3 Phase, 380V, 50Hz, 1.5 KW
Machine Weight: 450 kg
Remarks: Fully automatic combo system for sealing and strapping

Need Custom Packaging Engineering?

We design automation-ready packaging systems tailored to your production workflow and export standards.
