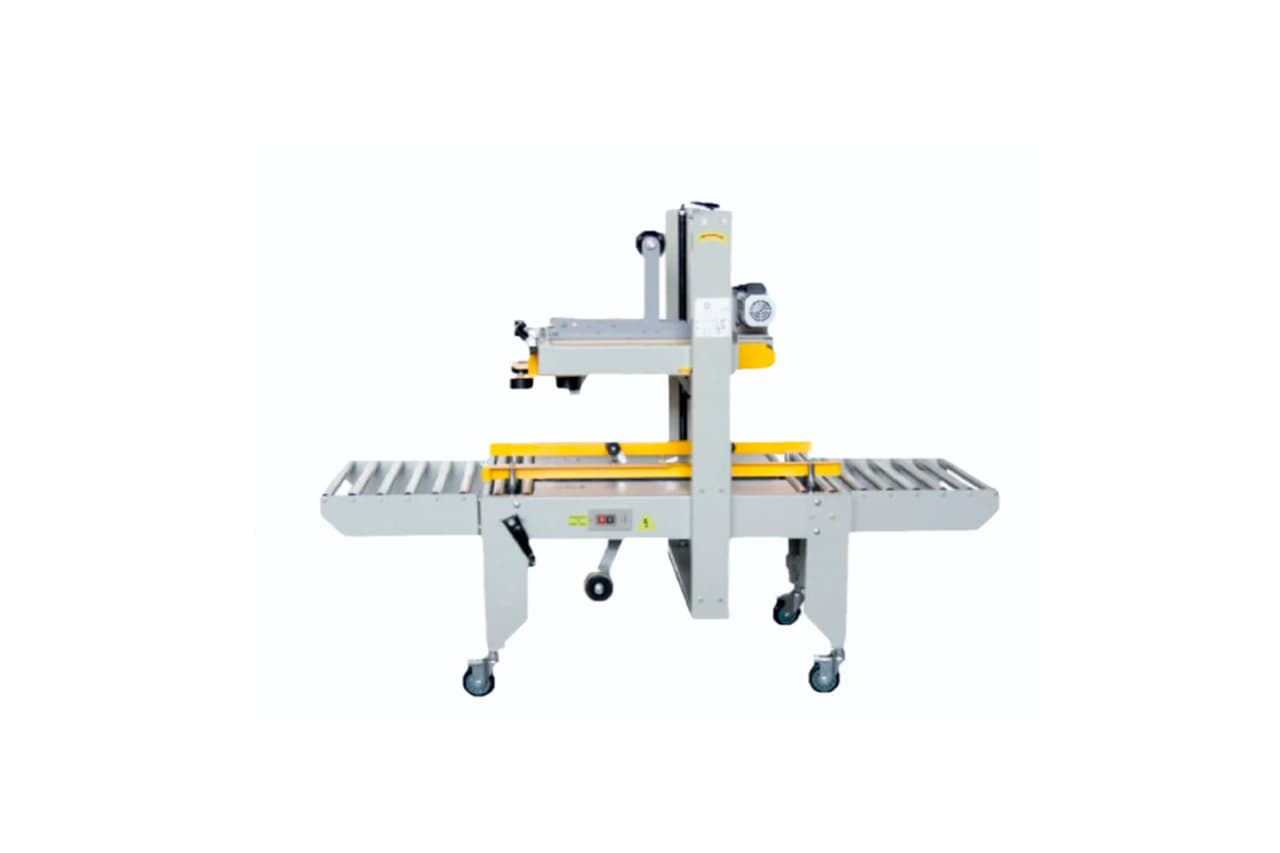

Carton Sealing Machines

Name: Carton Sealing Machines
Brand: ShivShakti Packaging Solutions
Availability: InStock

Discover Shivshakti’s complete range of carton sealing machines—from heavy-duty top & bottom drive systems to pneumatic flap-closing models—engineered for automation, export packaging, and high-speed throughput. Designed for adjustable carton sizes, tape flexibility, and seamless integration into packaging lines.

#sealing#machines#automatic#semi-automatic#manual EXPORT_READY

ENGINEERING_DATA

Variant Matrix & Specifications

Cam_Input_01

3D_RENDER

SPEC_REF_ID // 01

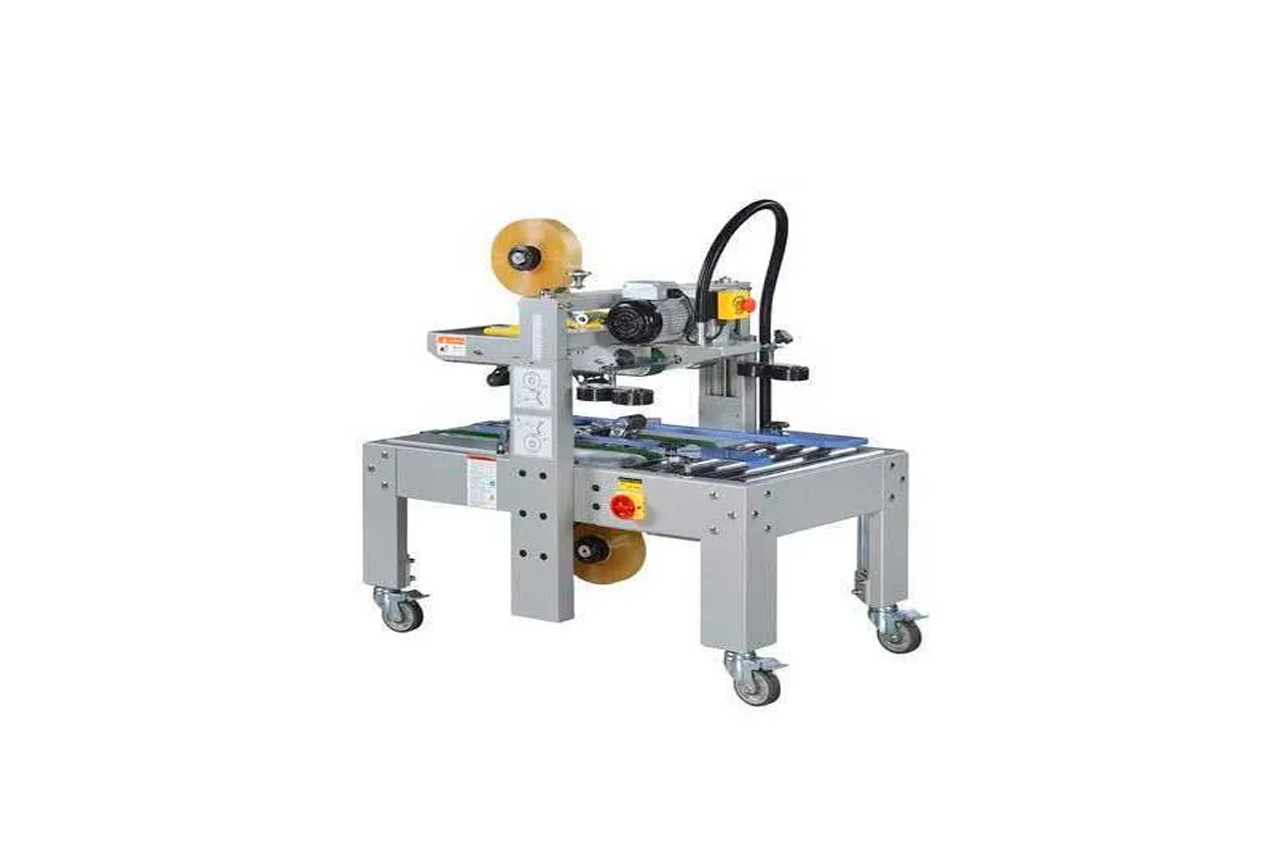

SSP-02MA Heavy Duty

Heavy-duty carton sealing for export-grade packaging

Function: Top & Bottom Drive
Power Supply: 220V/230V/240V or 380V/415V/440V, 50/60Hz, 2* or 3* Phase (as per customer)
Tape Carton Dimensions: 2* Tape: L: 150mm–∞, W: 130–500 mm, H: 110–500 mm | 3* Tape: L: 150mm–∞, W: 155–500 mm, H: 110–500 mm
Working Table Height: 570–770 mm (adjustable)
Belt Speed: 20 m/min
Machine Size: 1105 x 785 x 1420 mm
Machine Weight: 145 kg
Remarks: Heavy-duty carton sealing for export-grade packaging

Cam_Input_01

SSP-02SA Self Adjustment (Pneumatic) diagnostic view

3D_RENDER

SPEC_REF_ID // 02

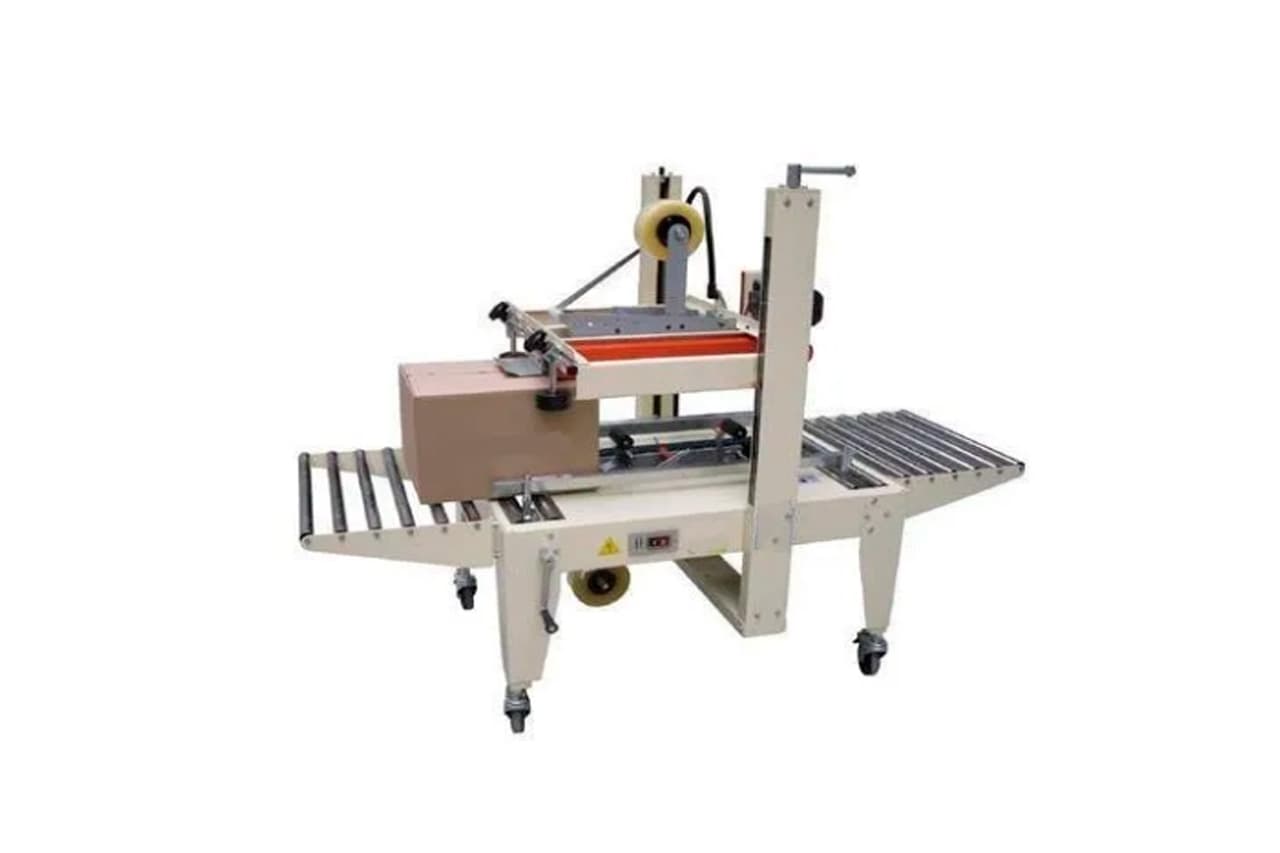

SSP-02SA Self Adjustment (Pneumatic)

Self-adjusting pneumatic system for variable carton sizes

Function: Top & Side Drive
Power Supply: 220V/230V/240V or 380V/415V/440V, 50/60Hz, 2* or 3* Phase (as per customer)
Tape Carton Dimensions: 2* Tape: L: 150mm–∞, W: 130–500 mm, H: 110–500 mm | 3* Tape: L: 150mm–∞, W: 155–500 mm, H: 110–500 mm
Working Table Height: 570–770 mm (adjustable)
Machine Size: 1250 x 910 x 1315 mm
Machine Weight: 160 kg
Remarks: Self-adjusting pneumatic system for variable carton sizes

Cam_Input_01

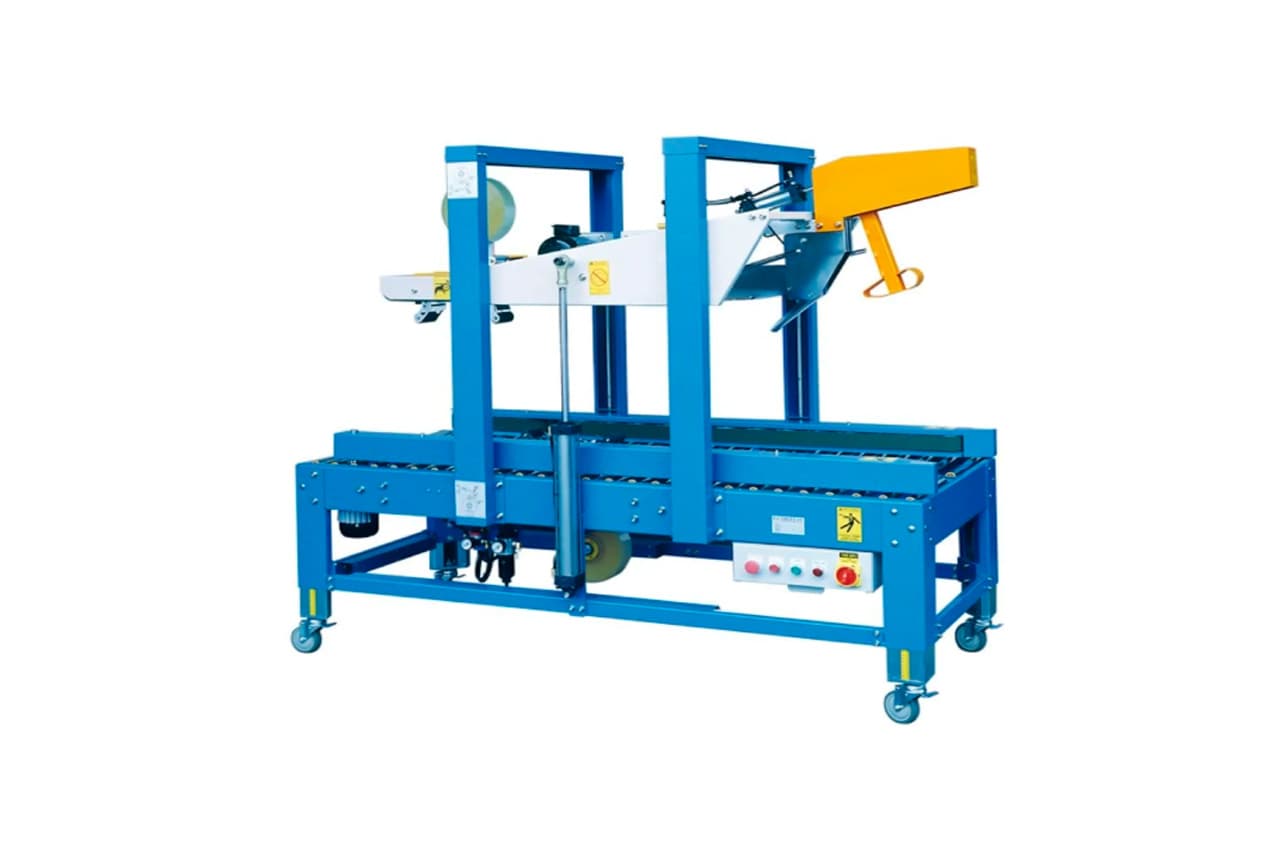

SSP-02SA-FC (Auto Adjustment + Auto Flap Closing) diagnostic view

3D_RENDER

SPEC_REF_ID // 03

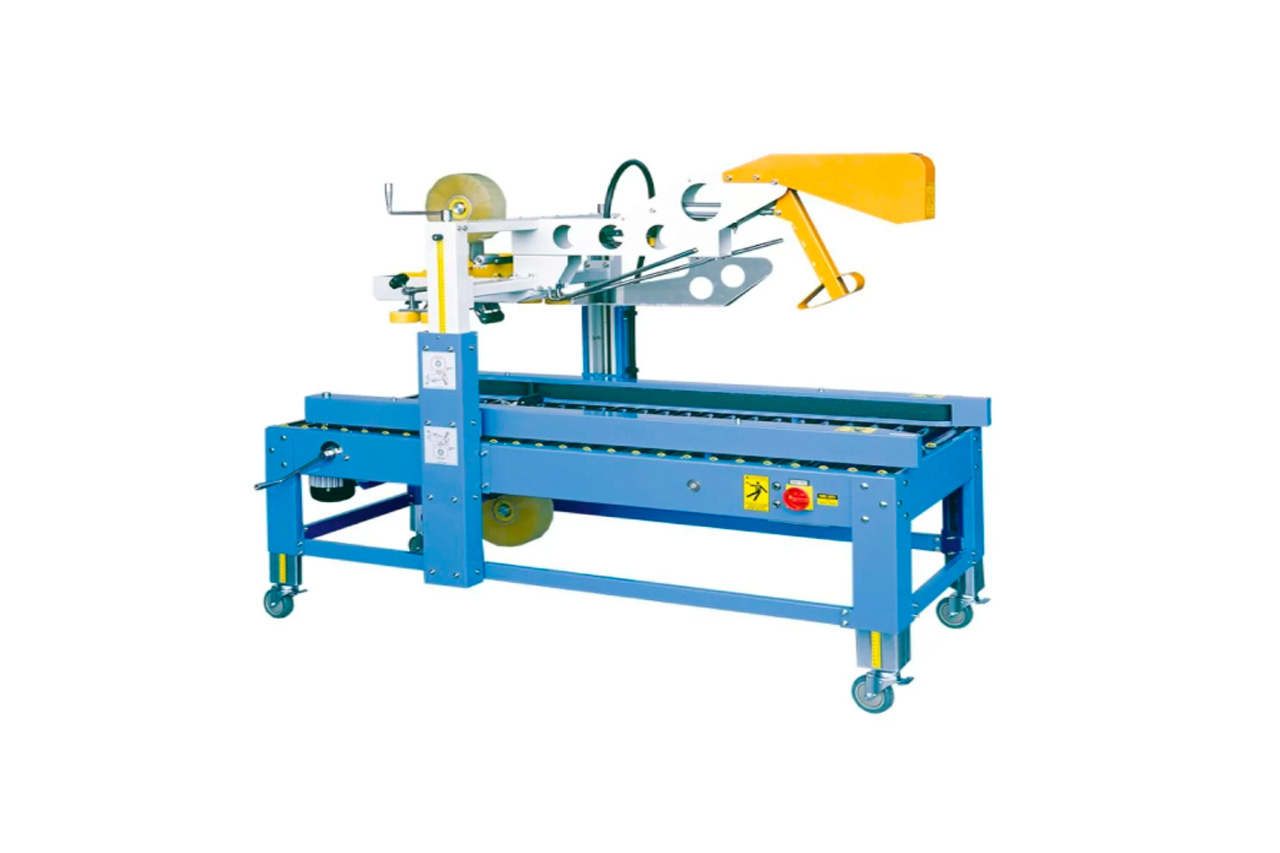

SSP-02SA-FC (Auto Adjustment + Auto Flap Closing)

Fully automatic flap closing and sealing for high-speed lines

Function: Side Drive
Power Supply: 220V/230V/240V or 380V/415V/440V, 50/60Hz
Tape Width: 2* or 3* (as per customer)
Tape Carton Dimensions: 2* Tape: L: 150–600 mm, W: 200–500 mm, H: 150–500 mm | 3* Tape: L: 150–600 mm, W: 200–500 mm, H: 150–500 mm
Working Table Height: 570–770 mm
Belt Speed: 20 m/min
Machine Size: 1985 x 950 x 1625 mm
Compressed Air: 6 kg/cm²
Remarks: Fully automatic flap closing and sealing for high-speed lines

Cam_Input_01

3D_RENDER

SPEC_REF_ID // 04

SSP-02MA Regular Model

Compact carton sealer for standard packaging operations

Conveying Belt Speed: 20 m/min
Min Carton Size: 140W x 150H mm (L: no bar)
Power Supply: 220V, 50Hz, 200W, 1 Phase
Working Table Height: 625–780 mm (adjustable)
Adhesive Tape Width: 48/60/72 mm
Machine Size: 1755 x 740 x (1445–1605) mm
Machine Weight: 120 kg
Options: Infeed / Outfeed Conveyor
Remarks: Compact carton sealer for standard packaging operations

Custom Industrial
Engineering Layouts?

We engineer dynamic inline modular configurations tailored explicitly around pre-existing production grids and high-output export pipelines.
